| DATASHEET | cooler than smart! | ||||||||||||
| LFM1352: SmartCooler© industrial fan 52x52x15mm | |||||||||||||

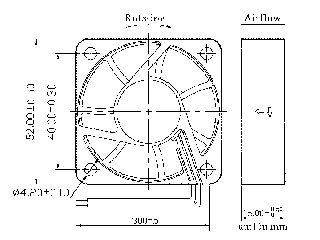

| Picture similar to product: | Drawing similar to product: | Create PDF | |||||||||||
|
|
|
||||||||||||
| Description: | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52x15mm SmartCooler© industrial high end fan made of PBT + 15-30% GF UL94V-0 with very low noise features, minimum vibration and minimum pulsing noise. Rotation from 2.000 up to 6.000 R.P.M.. Airflow from 11.0 - 32.0m³/h. Noise from 9-35dBA. | |||||||||||||
| Product Data: | |||||||||||||
| Size: | 52x52x15mm | Bearing: | 2 ball high tech nano bearing | ||||||||||
| Hole distance: | 42.0mm | Weight: | 38 gramm | ||||||||||
| Hole diameter: | 4.30mm | Frame: | 4-Hole Frame | ||||||||||
| Cable: | 200mm, UL 1007 AWG 26 | Connector: | 3-Pin connector 2.54mm | ||||||||||
| Optional features: | Speed signal | Autorestart | PWM-Signal | ||||||||||
| Function data: | (P)=PWM | ||||||||||||
| Version: | W | L | E | M | S | H | U | X | |||||
| Rotation - R.P.M. +/- 10%: | 2.000 | 3.000 | 3.500 | 4.000 | 4.500 | 5.000 | 5.500 | 6.000 | |||||
| Air flow m3/h: | 11.00 | 15.70 | 18.40 | 21.00 | 23.50 | 26.20 | 29.30 | 32.00 | |||||
| Air flow cfm: | 6.470 | 9.235 | 10.82 | 12.35 | 13.82 | 15.41 | 17.23 | 18.82 | |||||
| Aqmm: | 0.556 | 1.275 | 1.750 | 2.225 | 2.937 | 3.650 | 4.450 | 5.100 | |||||
| Noise dbA: | 9.000 | 15.00 | 19.00 | 22.00 | 25.00 | 28.00 | 32.00 | 35.00 | |||||
| Electrical Data: | |||||||||||||
| Rated current Amp: | 0.05A | 0.07A | 0.08A | 0.09A | 0.13A | 0.17A | 0.24A | 0.30A | |||||
| Rated Power: | 0.60W | 0.84W | 0.96W | 1.08W | 1.56W | 2.04W | 2.88W | 3.60W | |||||
| Starting Voltage: | 12.00V | 5.00V | 5.00V | 5.00V | 5.00V | 5.00V | 5.00V | 5.00V | |||||
| Operation Voltage: | 12.00V | 12.00V | 12.00V | 12.00V | 12.00V | 12.00V | 12.00V | 12.00V | |||||
| Physical boundaries: | |||||||||||||
| MTBF time about: | <= H = 300K/h, > H = 250K/h | Drop test: | Withstands free body drop of 30cm on a 1m² wooden table with a thickness of 10mm | ||||||||||
| Max. env. °C: | 70°C | Vibration test: | 1.000 R.P.M. at 2mm amplitute for 30min. | ||||||||||
| Item: | Safety standards: | ||||||||||||
| Produced after following standards: | CE, TüV, UL, UR | ||||||||||||
| Item: | Packing: | ||||||||||||
| Size retail box: | 120x120x15mm | ||||||||||||
| Shipping qty. each carton: | 200 pcs. | ||||||||||||
| Revision: | |||||||||||||
| Revision: 3.3 | Last change: 2008-09-01 | ||||||||||||
|
